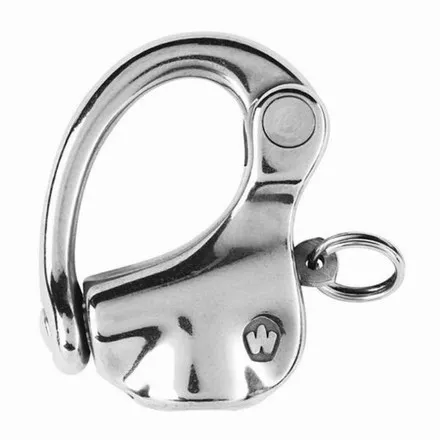

Wichard HR Snap Shackle – Without Swivel
- HR Forged snap shackle (Grade 17.4 ph stainless steel) without swivel (with female thread)
- The plunger pin is set captive into the hook and cannot become detached
- Excellent working and breaking loads
- Easy to open by pulling the plunger pin (possiblity to attach a lanyard)
Applications:
Use for assembly applications
blocks, babystay adjusters, attachament for flying sails furlers…
| Part Number | Length | Materials | Weight | A | B |
|---|---|---|---|---|---|
| WCH-72473 | 45mm | HR 17.4 PH stainless steel grade | 42g | 16mm | M7 x 75mm |
| WCH-72475 | 60mm | HR 17.4 PH stainless steel grade | 96g | 21mm | M9 x 75mm |
| WCH-72477 | 80mm | HR 17.4 PH stainless steel grade | 222g | 26mm | M12 x 100mm |
