HR D Shackle – Diameter 25/64″
Features:
- Forged D shackle in HR stainless steel grade (17,4 PH)
- Outstanding working and breaking load
- An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
- WLL: only for industrial applications (lifting i.e…)
- CE marking and batch number
Applications
- Applications requesting high loads
- Standard applications of the shackle
- Attachment applications: blocks, head
- Do not use it for mooring applications
Specifications:
- Materials HR 17.4 PH stainless steel grade
- Working load (lb) 5820
- WLL (lb) 2640
- Breaking load (lb) 13220
- Weight (lb) 0.225
- A (inch) 1 19/64″
- B (inch) 25/32″
- D diameter (inch) 25/64″
SKU:WIC-11205W
![Ronstan Clevis Pin - 7.9mm(5/16") x 31.9mm(1-1/4") [RF270]](https://www.propellerpartsmart.com/wp-content/uploads/2026/10/ronstan-clevis-pin-7-9mm-5-16-x-31-9mm-1-1-4-rf270.webp)

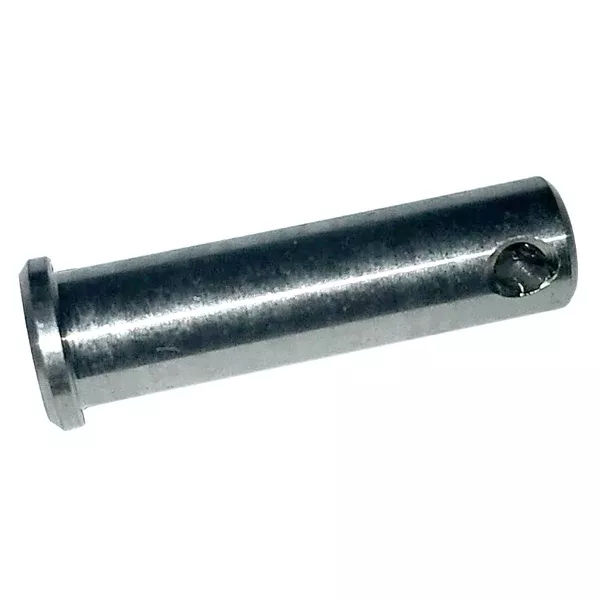

![Ronstan Clevis Pin - 9.5mm(3/8") x 19.3mm(3/4") - 2 Pack [RF271]](https://www.propellerpartsmart.com/wp-content/uploads/2026/10/ronstan-clevis-pin-9-5mm-3-8-x-19-3mm-3-4-2-pack-rf271.webp)
