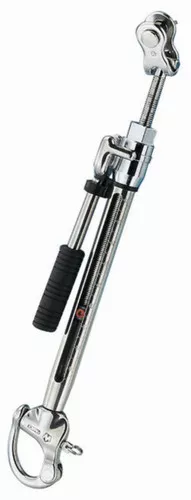

Wichard Babystay Adjuster with Handle
- Ideal for fitting a removable inner forestay (genoa or solent).
- Easy to install thanks to the snap shackle.
- Robust and performant.
- Strongly recommended when there is a furling system.
- The handle model offers great comfort during operations.
Applications
- Installation of a babystay adjuster to set up a solent, genoa…
- Improve the overall performance of the boat (especially those equipped with a reefing-furling system).
Caption
- Working load (WL) : for nautical applications.
Materials
- Snap hook in HR 17.4 PH stainless steel.
- 316L stainless steel grade.
| Maximum Opening Length | 450mm |
510mm |
540mm |
| Part Number | WCH-5554 | WCH-5556 |
WCH-5566 |
| For Wire Diameter | 4mm / 5mm | 5mm / 6mm / 7mm | 5mm / 6mm / 7mm |
| Handling Load | 800kg | 1200kg | 1200kg |
| Length Pin to Pin Closed | 310mm | 450mm | 370mm |
| Length Pin to Pin Open | 450mm | 510mm | 540mm |
| Toggle Length x Width | 10mm x 10mm | 15mm x 20mm | 15mm x 20mm |
| Pin Diameter | 8mm | 12mm | 12mm |
| Stud Diameter | 8mm | 12mm | 12mm |
| Working Load | 960kg | 2800kg | 2800kg |
| Breaking Load | 2400kg | 5100kg | 5000kg |
| Weight | 802g | 1268g | 1390g |
