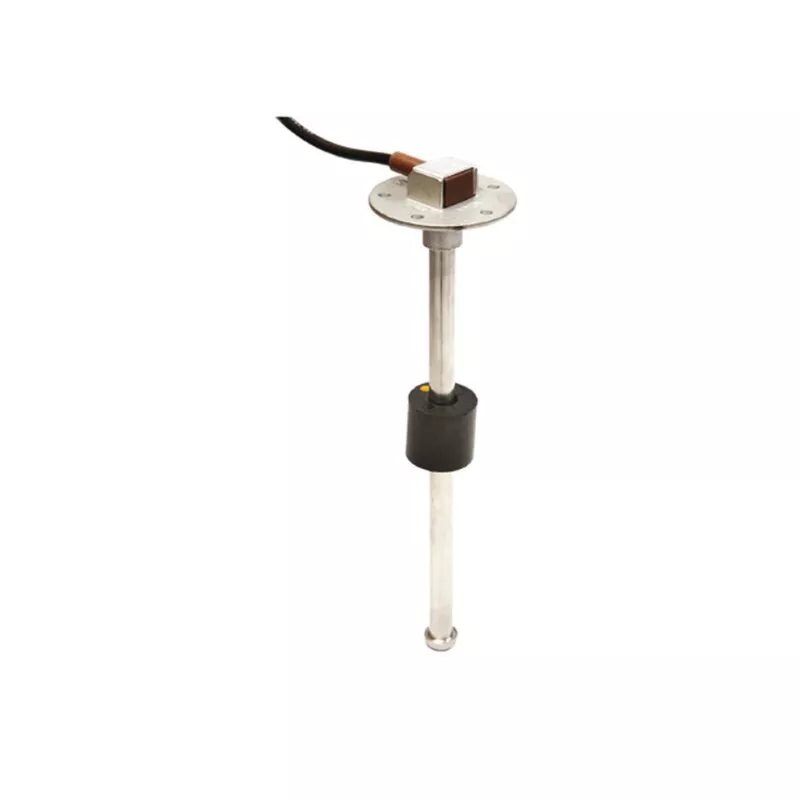

Level Sensor S3-E Standard EU 0-190 Ohm – 1400mm
The Wema S3 gauge model features a 1-1/4″ thread, designed for efficient tank level measurement.
- Fixed dimensions measured from the top of the thread.
- The free distance between the bottom of the tank and the bottom of the gauge increases the reserve volume.
- Electric cable length: 30 cm, 2 wires, 0.75 mm².
- Electrical resistance: 0 to 180 Ohm (European) or 240 – 30 Ohm (American).
- Nitrile O-ring for sealing.
- Height of the mounted gauge head: 21 mm.
- Operating temperature: -40°C to +70°C.
- Power supply: 12/24 V.
- Drilling: BSP R 1-1/4”.
- Outer diameter of the sensor head: 54 mm.
- Brand: Wema
- Product Number: 326024
Wema SKU: 326024
VDM – Reya SKU: 348983
EAN CODE: 7025923260242
