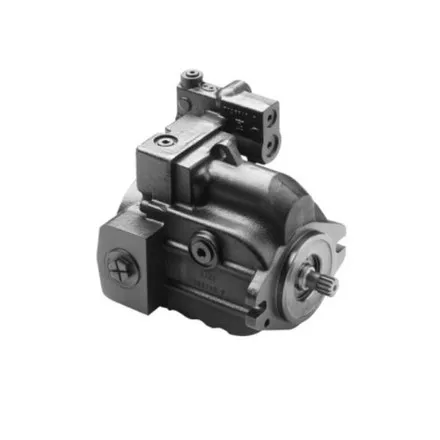

VETUS Variably Adjustable Piston Pump, 30cm³ / 45cm³, side connection
Low noise level thanks to cast-iron housing. SAE-B connection flange, drive shaft with 13-tooth spline. Pressure/suction connections on the side.
MORE INFORMATION
- Download the User Manual
| Part Number | Capacity | Sense of Rotation | Connections | Max. speed |
|---|---|---|---|---|
| VTS-HT1016SD1 | 30cc | LH – Anticlockwise | SAE-B flange, 13 spline shaft. | 3600 RPM |
| VTS-HT1016SD2 | 45cc | LH – Anticlockwise | SAE-B flange, 13 spline shaft. | 2800 RPM |
| VTS-HT1017SD2 | 30 or 45cc (1.83 or 2.75 cu.inch) | RH – clockwise | SAE-B flange, 13 spline shaft. Sideconnection for suction and pressure.Fits Twindisc gearboxes. | 2800 RPM |
