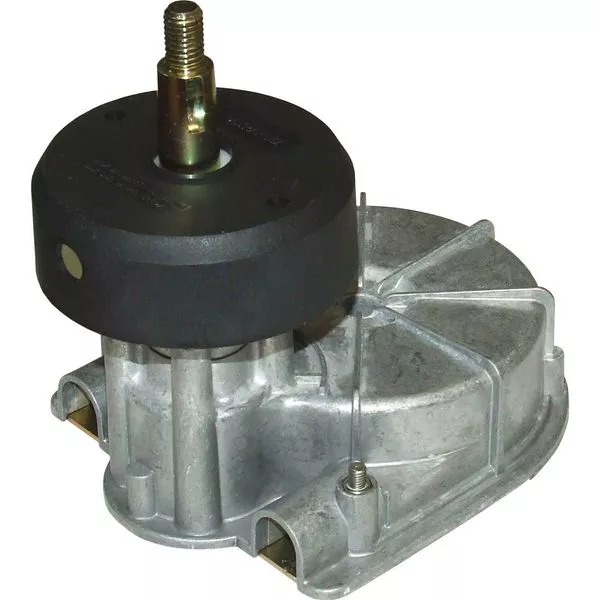

T85 ROTARY STEERING SYSTEM
Features & Technical Specifications
- All stainless steel cable output ends.
- Corrosion resistant materials.
- Particularly suitable where clearance is limited.
- Lock-to-lock steering wheel turns: approximately 3
- Stroke 228mm (9″).
- Maximum allowable steering wheel diameter: 406mm (16″).
- Minimum steering cable bend radius: 200mm (7.9″)
- Minimal feedback.
- Compact for mounting.
- T85 steering system should not be used on boats equipped with engines that
- exceed the maximum horsepower rating of the boat.
- Exceeds EN28848 and ABYC P17 safety standards.
Ultraflex t85 installation manual
