Stazo Steering Wheel Adapters – Delrin / Aluminum / Stainless Steel, Various Shaft Sizes and Keyways

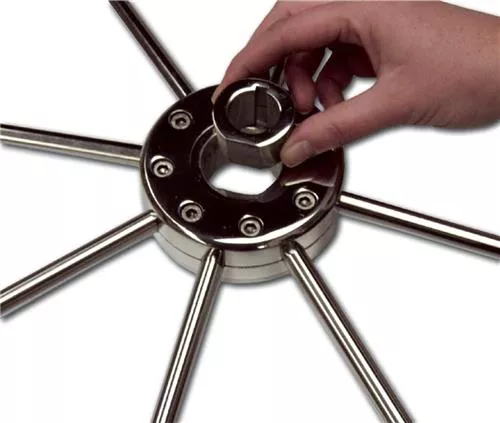

The Stazo EX Series Steering Wheel Adapters are designed for precise and reliable connection between steering wheels and hydraulic steering systems. These adapters are manufactured from high-quality materials including Delrin, aluminum, and stainless steel, ensuring durability, wear resistance, and long service life in marine environments.
Key Features
- Wide range of sizes and configurations
- Available with keyway (spie) or pre-drilled versions
- Precision-machined for accurate fit
- Suitable for steering wheel to pump and shaft connections
Materials
- Delrin: Lightweight, low friction, high wear resistance
- Aluminum: Strong and corrosion-resistant
- Stainless Steel (RVS): Maximum durability and corrosion protection
Technical Specifications
| Article | Dimensions (mm) | Keyway | Material |
| EX 157001 | 17 x 19 x 25 | 5 x 3 mm | Delrin |
| EX 157003 | 18 x 25 x 25 | 6 x 4 mm | Delrin |
| EX 157005 | 10 x 10 x 25 | Pre-drilled | Delrin |
| EX 157006 | 25.4 x 25.4 x 25 | 6.3 x 3.2 mm | Delrin |
| EX 157010 | 20.53 x 22 x 25 | 5 x 3 mm | Delrin |
| EX 157011 | 17 x 19 x 25 | 5 x 3 mm | Aluminum |
| EX 157012 | 19.7 x 22 x 26 | 6 x 3 mm | Aluminum |
| EX 157013 | 18 x 25 x 18 | 6 x 4 mm | Aluminum |
| EX 157014 | 17.2 x 20 x 25 | 4.7 x 2.4 mm | Aluminum |
| EX 157015 | 26 x 28.5 x 25 | 8 x 4 mm | Aluminum |
| EX 157016 | 25.4 x 25.4 x 25 | 6.3 x 3.2 mm | Aluminum |
| EX 157019 | 23.2 x 24.6 x 25 | 5 x 3 mm | Aluminum |
| EX 157020 | 20.53 x 22 x 25 | 5 x 3 mm | Aluminum |
| EX 157021 | 28 x 28 x 45 | 8 x 3.5 mm | Aluminum |
| EX 157031 | 17 x 19 x 25 | 5 x 3 mm | Stainless Steel |
| EX 157033 | 18 x 25 x 25 | 6 x 4 mm | Stainless Steel |
| EX 157036 | 25.4 x 25.4 x 25 | 6.3 x 3.2 mm | Stainless Steel |
| EX 157037 | 17.6 x 19.6 x 31 | 5 x 3 mm | Delrin |
| EX 157038 | 17.6 x 19.6 x 31 | 5 x 3 mm | Aluminum |
Application
These adapters are used in marine steering systems to connect steering wheels with hydraulic pumps or shafts, ensuring a secure and precise fit across different configurations.
