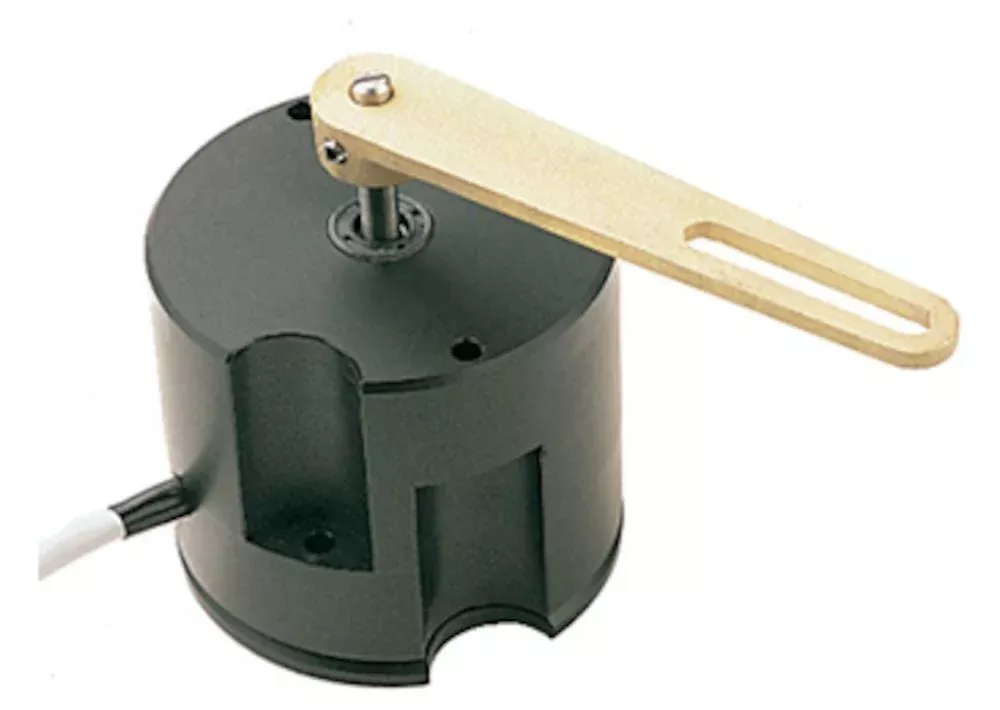

The RF45X is a medium duty rudder feedback unit. Mechanically it is identical to its predecessor, RF45, therefore it is a repairable rather than a potted throw away item.
Electrically it outputs a frequency (pulse width modulated) signal that matches with the J3XX input (AP35/AP50) but it can also output a frequency signal (selectable via internal jumpers) that matches with AP45 and AP9 Mk3. The RF45X can also operate on 24V DC a useful feature when connected in a stand alone rudder angle indicator system. The unit is mounted close to the rudder stock and is mechanically connected to the rudder by the RF45 transmission link.
Product Details
- Medium duty feedback unit with transmission linkage.
- Mechanically identical to Simrad RF45.
- Variable frequency output for Simrad autopilots.
- Variable current output for rudder angle indicators.
- Requires 12-24VDC supply voltage.
