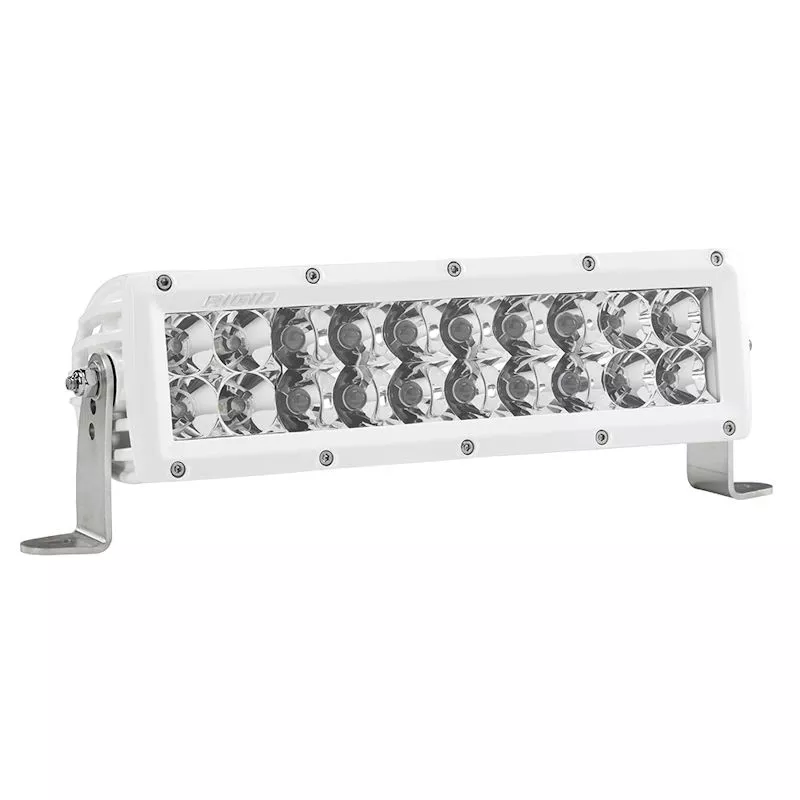

Rigid E-Series PRO 10″ LED Light Bar – Spot/Flood Combo

Rigid E-Series PRO 10″ Marine LED Light Bar – Spot/Flood Combo

Download Installation Instructions

The Rigid E-Series PRO 10″ marine LED light bar delivers uncompromising performance and durability for offshore navigation, docking, and all-night adventures on the water. Designed with a hybrid spot/flood beam pattern, this compact yet powerful light bar is perfectly suited for T-tops, hardtops, and radar arches, giving boaters reliable illumination where it matters most.

Key Features

• Hybrid Spot/Flood Optics: Balanced beam pattern for both distance and wide coverage on the water.
• Marine-Ready Housing: White powder-coated aluminum resists corrosion, UV damage, and saltwater exposure.
• IP68 Waterproof & Shock Resistant: Withstands harsh marine conditions, washdowns, and heavy seas.
• High Output Performance: 20 LEDs producing 15,840 raw lumens for superior nighttime visibility.
• Extended Service Life: 50,000+ hour LED lifespan with integrated thermal management system.
• Surface Mount Design: Easy installation on hardtops, T-tops, and radar arches.

Specifications

• Voltage: 9–36V DC
• Amp Draw: 11.79A @ 12V
• Power: 165W
• LEDs: 20
• Raw Lumens: 15,840
• Beam Pattern: Hybrid Spot/Flood Combo
• Lux @ 10m: 2002.67
• Beam Distance @ 1 Lux: 447.5 m
• Beam Distance @ 0.25 Lux: 895 m
• Peak Beam Intensity: 200,267 cd
• Horizontal Beam Angle: 19.1°
• Housing: White powder-coated aluminum
• Lens: Impact-resistant polycarbonate
• Weight: 4.12 lbs
• Dimensions: 10″ length (shipping box 6″ × 12″ × 6″)
• IP Rating: IP68 (dustproof and waterproof)
• Operating Temp: -40°F to +145°F
• Compliance: SAE J575 (shock/vibration), RoHS compliant
• Warranty: Limited Lifetime Warranty

Performance Table

Applications

• Mounting on hardtops, T-tops, and radar arches
• Offshore navigation for fishing and cruising vessels
• Dockside illumination for safer loading and unloading
• Night anchoring or mooring with wide, reliable coverage
• Ideal for yachts, center consoles, sportfishers, and workboats

Engineered for strength, clarity, and longevity, the Rigid E-Series PRO 10″ marine LED light bar is built to perform in the toughest marine environments. With its waterproof construction, brilliant output, and hybrid beam versatility, it’s the go-to choice for serious boaters who need dependable lighting offshore.
