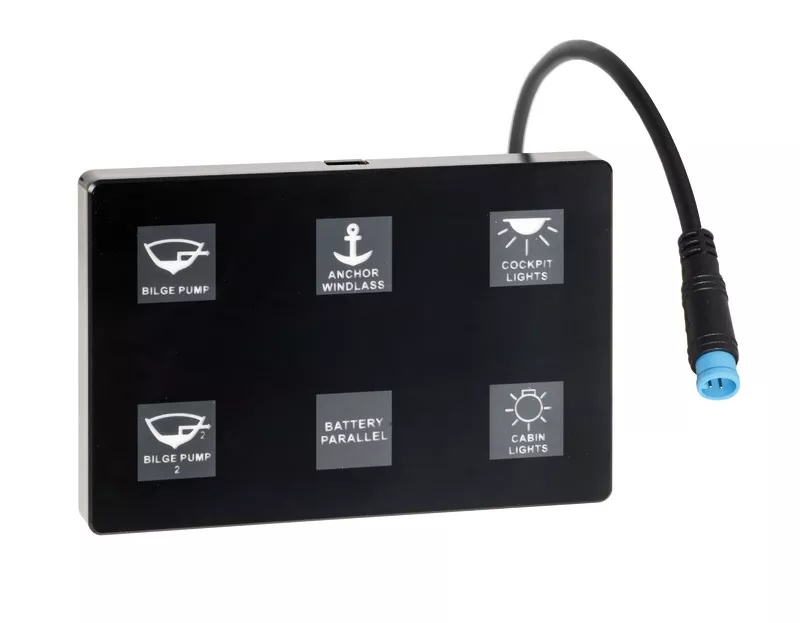

Osculati 14.691.06 – Touch Electrical Panel 6 Interr.
The Osculati 14.691.06 Touch Electrical Panel is a versatile and sophisticated solution for controlling your vessel’s electrical systems. This modular panel is constructed with a sleek glass design featuring backlit symbols for easy visibility in various lighting conditions. Included with the panel are 40 stickers indicating different functions, creating a smooth surface for a print-like effect.
Each switch on the panel offers three different modes of operation:
– Traditional ON-OFF: Press a key to activate/deactivate the related function (e.g., COCKPIT LIGHTS).
– Temporary (ON)-OFF: Function is active only when the key is pressed (e.g., HORN, WINDLASS UP/DOWN).
– ALTERNATE ON-OFF: Two keys can be set to activate one function and deactivate another (e.g., BILGE PUMP IN MANUAL/AUTOMATIC MODE).
The keys are backlit in yellow in standard mode, blue when the function is active, and red in case of a short circuit. The modular design of the panels allows for easy expansion by placing them side by side vertically and/or horizontally, creating a seamless built-in panel with 4, 6, 8, 10, or 12 switches, and so on.
CE-certified with IP67 protection, these panels offer reliability and durability in marine environments.
Specifications:
No. of switches: 6
Voltage: 12/24V
Circuit breaker power: 2x5A; 2x10A; 2x15A
Panel dimensions: 93x62x10mm
Installation bore Ø: 16mm
Control box dimensions: 100.5x152mm
