Designed for vessels of all sizes with smaller loads the MPower CLMD12 is a compact 12-Channel DC Load Controller Module. Two of the 12 breakers handle a maximum of 12 amps six handle a maximum of 10 amps and four handle a maximum of 5 amps with a total current capacity of 75 amps. Additionally like circuits can be paralleled.
If a smaller circuit needs to be protected each of the 12 breakers can be set to trip at lower current levels using the new Maretron N2KAnalyzer V3 software. In addition the CLMD12 has inputs for up to 7 hard-wired switches that can be used to switch breaker states or as inputs for other data such as bilge alarms or hatch positions etc.
Datasheet Manual
The CLMD12 handles many DC load types such as lights pumps motors and electronics. An added benefit of the CLMD12 is that it reports the current through each of the 12 breakers. This allows you to determine if loads are drawing too much or too little electrical current. This information can be used to report overcurrent faults and undercurrent conditions.
For manual control of the loads an MPower 12-Channel Bypass Module (CBMD12) can be installed in conjunction with the CLMD12.
Monitor and control onboard electrical and electronic systems and reset circuits onboard and remotely with the following devices:
- Any 3rd party MFD that supports standard digital switching PGNs
- Maretron MBB300C Black Box – Garmin OneHelmTM – Raymarine LightHouse 3
- Maretron TSM Series Dedicated Touchscreen
- MPower VMM6 Digital Switch Module
- MPower CKM12 Keypad
- Any device running Maretron’s award-winning N2KView V3 Software

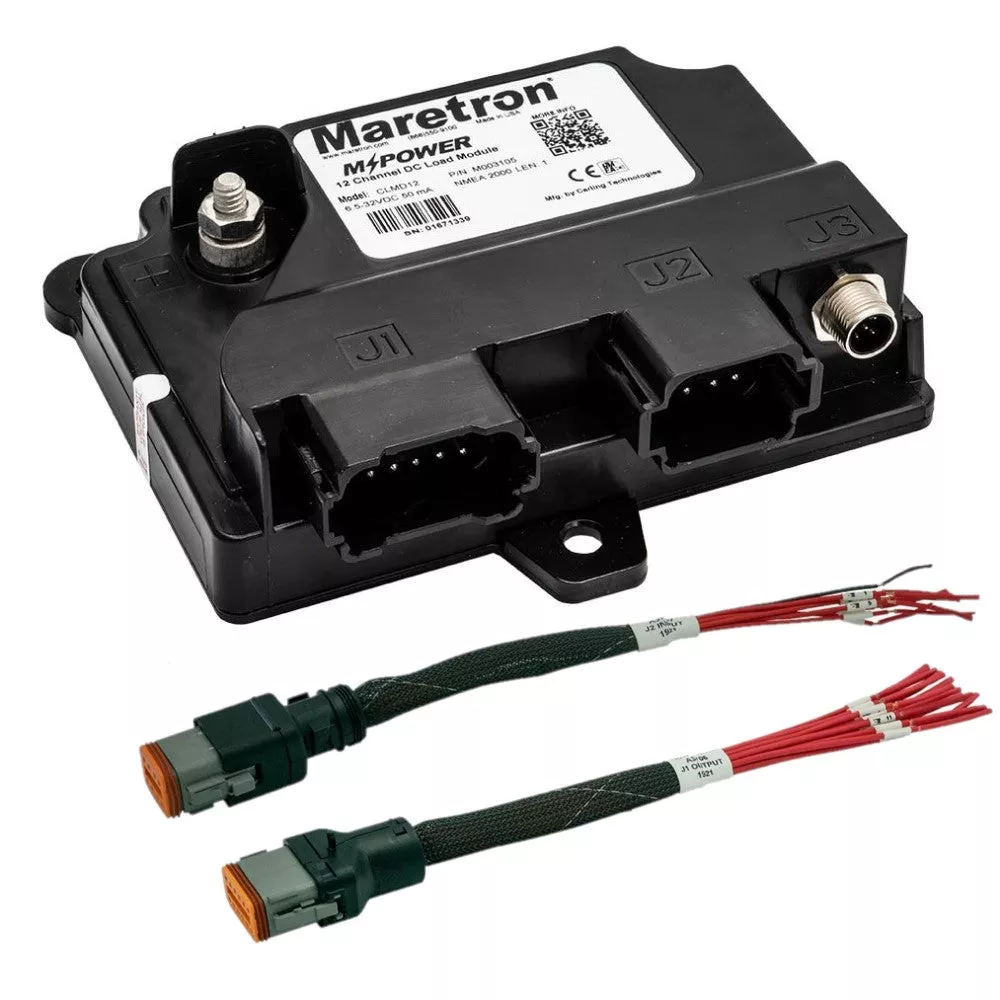

In The Box
- CLMD12 – 12 Channel DC Load Controller Module
- A3706 – Output (J1) Mating Connector with 0.3m Flying Leads
- A3707 – Input (J2) Mating Connector with 0.3m Flying Leads
