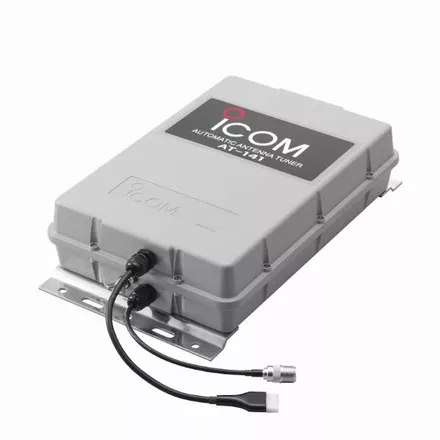

ICOM Automatic Antenna Tuner IC-141 (version 64)
- Frequency range 100 kHz-30 MHz
- 45 frequency memories for shorter tuning time
| Part Number |
|---|
| ICO-AT141_64 |
| Frequency coverage | 1.6–30 MHz (with 7 m or longer antenna element) |
|---|---|
| Power supply requirement | 13.6 V DC (supplied from the HF transceiver) |
| Current drain | Maximum 2 A |
| Operating temperature range | –30°C to +60°C (AT-141 Version 64 version) |
| Weight (approximately) | 2.5 kg |
| Antenna connector | SO-239 (50 Ω) |
| Maximum Input power | 150 W (PEP) 100 W (continuous) |
| Automatic tuning time | Approximately 2 to 3 seconds (general condition) Maximum 15 seconds |
| Automatic tuning accuracy | SWR 2.0:1 (after tuning, except for multiples of 1⁄2 λ) |
| Usable pole diameter | 32 to 60 mm |
| IP rating | IPX6 |
| Note | AT-141 Version 64 is for use with the IC-M804. Version 65 must be used for MED certification compliance with the GM800. |
