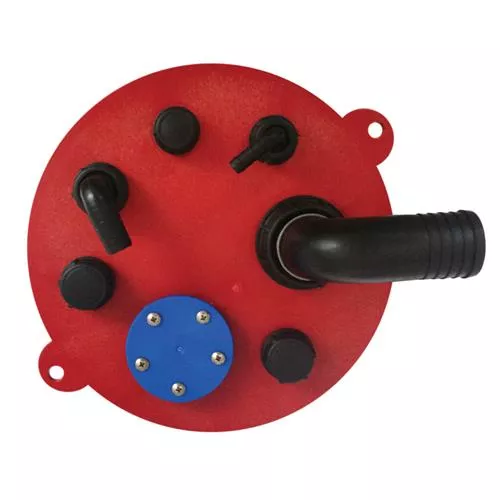

Hollex Tank Plate Fuel 135011
The tank lid for Hollex fixed tanks is designed for fuel, water, or waste. Each plate is manually screwed onto the tank and secured with a locking pin to prevent loosening. Cleaning the tank is straightforward—simply lift the locking pin and unscrew the hatch for easy access to the interior.
- Product Number: 135011
- Handcrafted and secured with locking pin
- Easy to clean, just lift the pin to access the interior
- Includes all relevant hose connections, caps, and internal sealing gaskets
- Fittings vary depending on the liquid being stored
- Compatible with retrofitting tank gauge transmitters (not included)
Available in three versions:
- Fuel Red Connections:
- 1 x 90 degrees x 38mm
- 1 x 90 degrees x 17mm
- 1 x 90 degrees x 11mm
- 4 x caps
- Gasket
- Water Blue Connections:
- 1 x 90 degrees x 38mm
- 1 x 90 degrees x 17mm
- 1 x 90 degrees x 13mm
- Gasket
- Wastewater Grey – two versions – see related articles
- Sales Unit: 1 Piece
- EAN Code: 8720193012933
- Brand: Hollex
- Suitable for: Fuel
- Color: Red
- Material: HDPE
- Shape: Round
