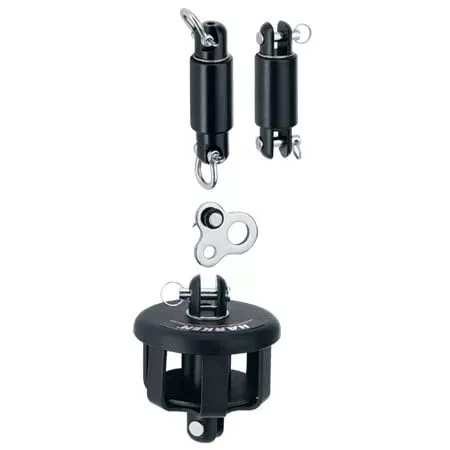

Stainless steel tack adapter tangs are used to adapt pin diameters on headstays to the standard clevis pin size that comes on the Harken Small Boat underdeck furling unit. A third hole accepts lashing to adjust jib luff tension.
Product Specifications
Tang hole to tang hole length (mm) 35 mm
Tang hole to tang hole length (in) 1 3/8 in
Maximum luff wire Ø (mm) 4 mm
Maximum luff wire Ø (in) 5/32 in
Length (in) 2 3/8 in
Length (mm) 60 mm
Width (in) 2 in
Width (mm) 51 mm
Upper pin Ø (mm) 8 mm
Upper pin Ø (in) 5/16 in
Lower pin Ø (mm) 8 mm
Lower pin Ø (in) 5/16 in
Weight (g) 91 g
Weight (oz) 3.2 oz
Maximum working load (kg) 907 kg
Maximum working load (lb) 2000 lb
Use with furling unit 493
