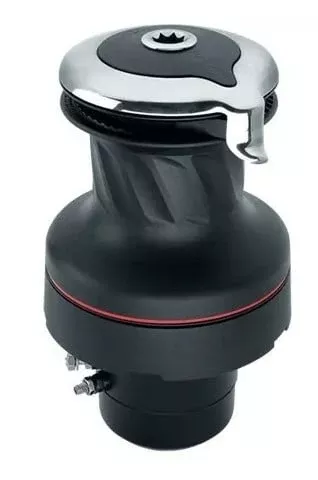

Harken 60.2 Performa Electric Winch with Dual Function Control Box

Key details

• Product type: 60.2 Performa Electric Winch with Dual Function Control Box
• Options: Voltage, Mount
• Available variants: 6

Overview

All Performa™ winches feature sandblasted drums optimized for halyard and sheeting applications using small-diameter, high-tech line. Electric Performa winches let you trim any size sail with the push of a button. Maximum line Ø (mm) 16 mm Maximum line Ø (in) 5/8 in Configuration Self-tailing Speed 2 Power ratio – 1 20.3 Power ratio – 2 61 Specifications: Weight (kg) 10.2 kg Weight (lb) 22.5 lb Maximum line Ø (mm) 16 mm Maximum line Ø (in) 5/8 in Fasteners (mm) M8 SH mm Fasteners (in) 5/16 SH in Fastener circle (mm) 204 mm Fastener circle (in) 8 in Height (mm) 246 mm Height (in) 9 11/16 in Number of fasteners 6 Minimum line Ø (mm) 8 mm Minimum line Ø (in) 5/16 in E (mm) 69 mm E (in) 2 3/4 in F (mm) 181 mm F (in) 7 1/8 in Configuration Self-tailing Speed 2 Drum Ø (mm) 120 mm Drum Ø (in) 4 3

Specifications

Specifications vary by the selected variant. Use the variant table below to compare the available configurations and part numbers.

Variant details

Select the option combination that matches the required part number.
