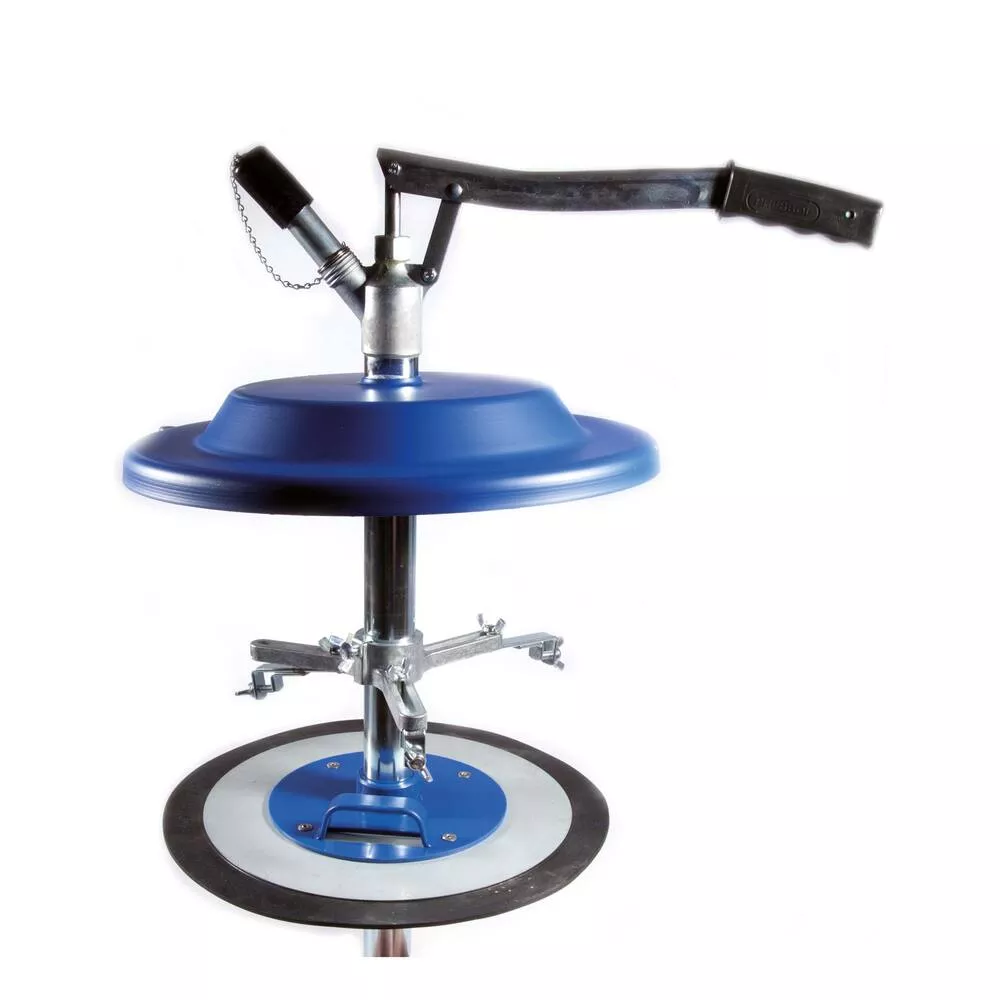

Grease Gun, Filling Apparatus 20kg
This filling apparatus is designed for lever-type, one-hand, and pneumatic grease guns. Thanks to the liftable lid, grease levels in the 20 kg tub (diameter approx. 270–310 mm) can be checked without unbolting. The lid protects against dirt and dust, and the angled filling connection allows for easy filling with angled nipples. The connection includes a valve to prevent leaks and comes with an extra M10 filling nipple. This apparatus is not suitable for direct greasing of lubrication points such as propeller shafts, as it requires a minimum working pressure of 200/400 bar. It delivers approximately 30 cc per stroke with a working pressure around 8 bar.
- Working pressure: around 8 bar
- Capacity: around 30 cc per stroke
- For tub weight: 20 kg
- For tub diameter: approx. 270 – 310 mm
- Pressol: 17820
- Product code: 48.15.120
