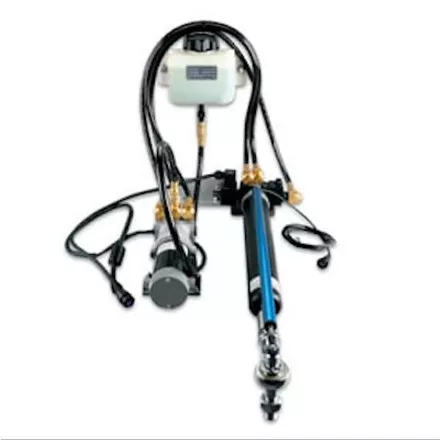

Garmin Class B Drive Unit for GHP 12

Garmin Class B Drive Unit for GHP 12

• Garmin’s Class B Drive Unit works with the GHP 12 Marine Autopilot System to control your sailboat’s steering system.
• This device is designed for use with larger sailboats with up to 79,000 lbs of displacement

Specifications:

• Drive Unit Type: Hydraulic linear
• Stroke Length: 12″ (303 mm)
• Maximum Thrust: 2380 lb (1080 kg)
• Supply Voltage: 10V to 30V
• Average Clutch Current at 12V: 1 Amp
• Average Motor Current at 12V: 3-4 Amps
• Operating Temperature: -15° C to 60° C(5° F to 140° F

Dimensions, WxHxD:

• Motor: 8.8″ x 3″ x 3.5″ (223 x 76 x 88 mm)
• Cylinder (centered): 32.7″ x 4.1″ x 6.3″ (830 x 105 x 160mm)
• Reservoir: 7.9″ x 6.1″ x 3.3″ (200 x 155 x 85 mm)
