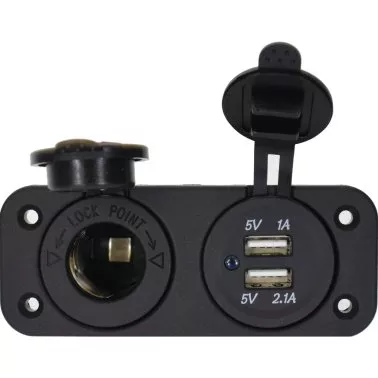

USB Flush-Mount Socket – Double
This product offers a versatile and robust solution for your power needs while on the go.
- 12 V female waterproof socket
- PVC sealing cap
- Inner cage: chrome-plated brass
- Cage with notch ensuring locking position for the male plug
- Max current: 15 A at 12 V
- Locking: When the male plug lugs are pressed against the triangular markers of the female base = locked position (perfect connection)
- To unlock, turn the plug a quarter turn
- Double USB socket
- Recessed base: shockproof nylon
- Input: 6V to 30V
- 1 female USB socket: 5V – 1A (for smartphones…)
- 1 female USB socket: 5V – 2.1A (for tablets…)
- Total max current: 3.1A at 5V
- Voltage indicator light: blue
- Connection via 6.35 mm terminals with identification
- Mounting: Secured by a clamping ring and/or a screw-mounted front plate with a drilling diameter of 29 mm
- Wall thickness: max. 28 mm
- Mounting depth: min. 60 mm
VDM – Reya SKU: 050026
EAN CODE: 3425990500267
