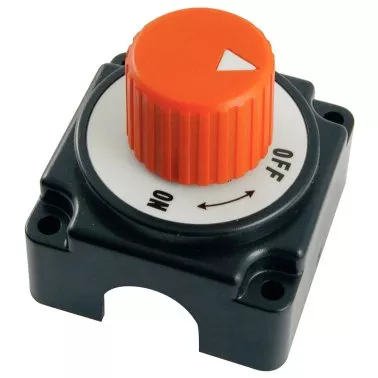

Single-Pole Knurled Battery Switch 250A Red
This high-performance battery switch is designed for both 12V and 24V systems, providing reliable power management for your needs.
- Voltage: 12 V or 24 V
- Continuous Capacity: 250 A
- Maximum Momentary Capacity: 350 A
- Contact: 9.3 mm diameter copper bolts
- Connection:
- Can be connected to either the (+) or (-) terminal of the battery
- For cable connections, use M10 solder terminals (ref. 000127 for 25 mm² cable or ref. 000129 for 35 mm² cable)
- Mounting:
- Dimensions: 68 mm x 68 mm x 68 mm
- Drilling Center Distance: 55 mm
- Hole Diameter: 5.5 mm
- Brand: Euromarine
VDM – Reya SKU: 001802
EAN CODE: 3425990018021
