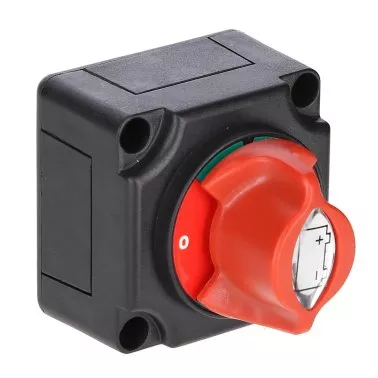

Single-pole Battery Switch 300A
This single-pole battery switch is designed for efficient battery management and reliable performance.
- Voltage: 12 V to 48 V DC
- Continuous Capacity: 700 A at 12 V
- Momentary Capacity: 700 A at 12 V for 10 seconds
- Rotary Knob: 4 positions
- Contacts: Copper bolts Ø 9 mm
Connection:
For cable connection on the contacts, use M10 solder terminals (ref. 000127 for 25 mm² cable or ref. 000129 for 35 mm² cable).
Mounting:
- Dimensions: 68 mm x 68 mm x thickness 77 mm
- Drill hole spacing: 56 mm
- Mounting hole diameter: 5 mm with 8 mm nuts
Brand: Euromarine
VDM – Reya SKU: 001821
EAN CODE: 3425990018212
