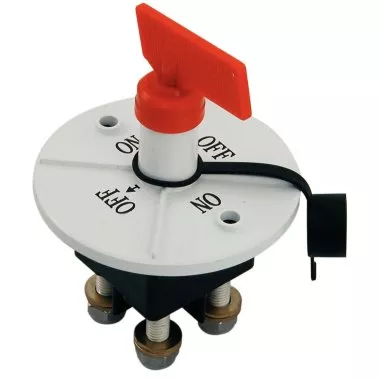

Bipolar Battery Switch With Key 300A
This high-performance battery switch is designed for reliable connectivity and safety in various applications.
- Voltage: 12 to 48 volts DC
- Continuous Current: 300 amperes
- Instantaneous Current: 1000 amperes for 10 seconds
- Rotary Key Positions: ON / OFF (key inserted) / ON / OFF (key removed)
- Copper Terminals: Ø 9.8 mm x length 25 mm
- Inner Contacts: Copper
- Internal Mechanism: Brass (shaft, screws, etc.)
- Protection Rating: IP 65
- Dimensions: Ø 107 mm x height 145 mm (with key)
- Mounting: Recessed hole Ø 24 mm
- Maximum Wall Thickness: 25 mm
- Available Space: 75 mm behind the wall
- Connection: Use M10 solder terminals
Brand: Euromarine
VDM – Reya SKU: 000644
EAN CODE: 3425990006448
