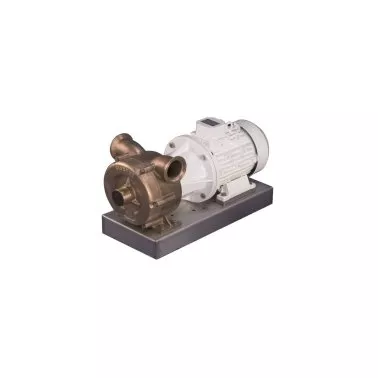

Multi-service Pump 040 MP – 230V
The Multi-service Pump 040 MP – 230V is engineered for versatility in various applications such as bilge emptying, firefighting, and transferring liquids including fresh water and diesel. Its durable construction ensures reliable performance.
- Self-priming bronze electric pump
- Pump body: Bronze
- Wheel: Bronze
- Pipe fittings: Bronze
- Shaft: AISI 316 stainless steel
- Mechanical seal: ceramic-graphite-NBR (special anti-corrosion)
- DC motor: 12/24V, IP23 protection, insulation class F, continuous service (S1)
- MP Series: 12/24V Permanent Magnet Motor – IP 44, Class F Insulation, Continuous Service (S1)
- Induction Electric Motor: 230V – 50Hz, IP55, Insulation Class F, Continuous Service (S1)
- Liquid temperature range: +0 to +70 °C
- Maximum suction depth: 6 m (4 m for 020 and 020MP models)
- Max operating pressure: 6 Bar
- Flow rate: 28 L/min to 500 L/min
- Brand: CEM
VDM – Reya SKU: CEM00011
