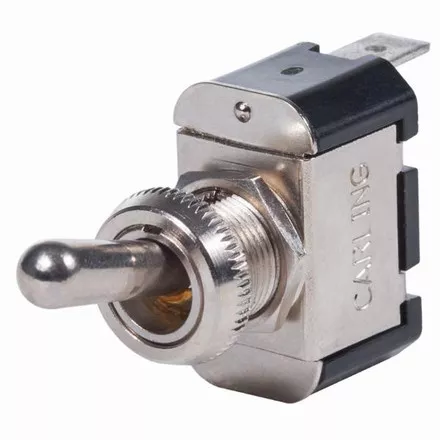

Blue Sea WeatherDeck Toggle Switch SPST – (ON)-OFF
- Specially manufactured by Carling Technologies for use in Blue Sea Systems’ WeatherDeck® Panels
- When mounted with a WeatherDeck® Toggle Switch Boot Rated IP67-temporary immersion for 30 minutes
- Nickel-plated brass and phenolic non-corrosive construction
| Part Number | Action | Pole / Throw | Poles | Common Applications | Maximum Amperage | Terminal Type | Number of Terminals | Terminal Size | Weight |
|---|---|---|---|---|---|---|---|---|---|
| BSS-4151 | OFF-(ON) | SPST | 1 | horn or windshield wipers | 15A @ 125V AC 15A @ 12V DC 10A @ 250V AC |
Quick Connect Tab | 2 | 0.25in (6.35 mm) | 0.05kg |
