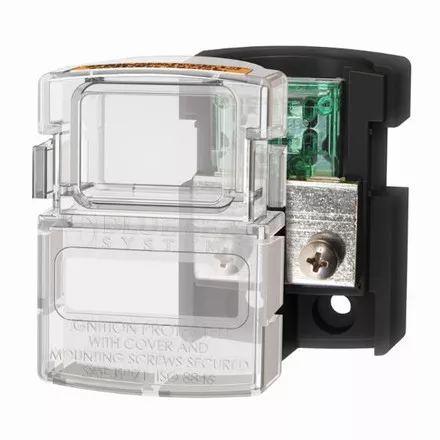

Blue Sea MAXI Fuse Block
- Snap-on terminal cover insulates all conductive parts, satisfying ABYC/USCG requirements
- Cover breakouts allow wires from sides or bottom
- Terminal screws compress fuse blades within blocks for low resistance connections
- Ignition Protected
- Label recess accepts large format label
- Fuses sold separately
| Part Number | Maximum Amperage | Maximum Voltage | Mounting | Screw Terminal Torque | Wire Size | Weight |
|---|---|---|---|---|---|---|
| BSS-5006100 | 80A | 32V DC | 10 Screws | 25 in-lb (2.82 Nm) | 14 – 4 AWG | 0.11kg |
